Fisher® E-Body Sliding Stem Valve

The Fisher® E-body is a general-purpose globe valve that is designed for on-off or throttling control for a wide range of liquid or gas applications. The E-body comes in 4 main variations: EZ, ES, ET, and ED.

The EZ and ES are equipped with unbalanced valve plugs with metal seats. The ET and ED are equipped with a cage-guided balanced plug and also with metal seating. The ET has an optional PTFE seat for bubble-tight shutoff.

  • Flow Characteristics include Linear, Quick opening, or Equal Percent.
  • Restricted trim capabilities available.
  • NPS 1, 1 ½, 2, 3, 4, 6, AND 8 inch, NPT also available in 1-2”.
  • 150-600 flanged ANSI Class rating, buttweld and socket weld end connections also available.
  • Available body materials are WCB, WCC, and SST (CF8M)
  • Whisper®I, Whisper III®, and Cavitrol®III trim options are available for the ET, ED, and ES designs.

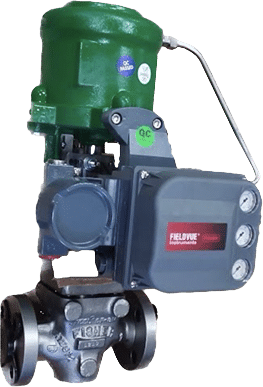

Fisher E-Body

01

Fisher ET

The Fisher ET is a single port globe valve that’s cage guided with a balanced plug designed for on/off or throttling control. Metal-to-PTFEF seat comes standard in all configurations except with Cavitrol®III cages where metal-to-metal seating is used. Standard Class IV shutoff with class V and VI optional.

  • Flow Characteristics include Linear, Quick opening, or Equal Percent.
  • Restricted trim capabilities available.
  • NPS 1, 1 ½, 2, 3, 4, 6, AND 8 inch.
  • 150-600 flanged ANSI Class rating, buttweld and socket weld end connections also available.
  • Available body materials are WCB, WCC, and SST (CF8M)
  • Whisper®I, Whisper III®, and Cavitrol®III trim options.

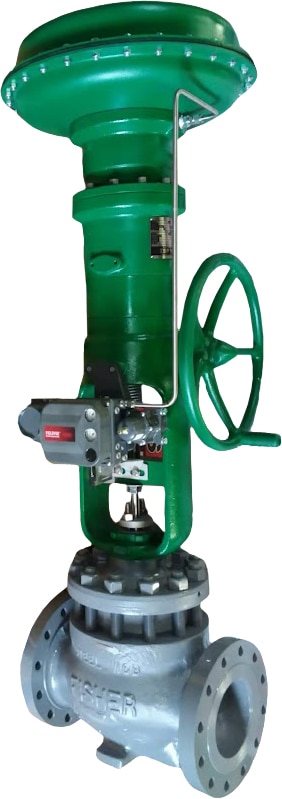

Fisher ET Valve

02

Fisher ED

The Fisher ED is a single port globe valve that’s cage guided with a balanced plug designed for on/off or throttling control. Metal-to-metal seat comes standard in all configurations. Standard Class II shutoff with III, IV, and V optional.

  • Flow Characteristics include Linear, Quick opening, or Equal Percent.
  • Restricted trim capabilities available.
  • NPS 1, 1 ½, 2, 3, 4, 6, AND 8 inch.
  • 150-600 flanged ANSI Class rating, buttweld and socket weld end connections also available.
  • Available body materials are WCB, WCC, and SST (CF8M)
  • Whisper®I, Whisper III®, and Cavitrol®III trim options.
Fisher ED Valve
EZ.2 Fisher Valve

03

Fisher ES

The Fisher ES is a single port globe valve that’s cage guided with an unbalanced plug designed for on/off or throttling control. Metal-to-metal seat comes standard in all configurations. Standard Class IV shutoff with V and VI optional with metal-to-PTFE seating.

  • Flow Characteristics include Linear, Quick opening, or Equal Percent.
  • Restricted trim capabilities available.
  • NPS1/2, ¾, 1, 1 ½, 2, 3, 4, 6, AND 8 inch.
  • 150-600 flanged ANSI Class rating, buttweld and socket weld end connections are also available.
  • Available body materials are WCB, WCC, and SST (CF8M)
  • Whisper®I trim options available in all sized except NPS 8.

04

Fisher EZ

The Fisher ES is a single port globe valve that’s post guided with an unbalanced plug designed for on/off or throttling control. Metal-to-metal seat comes standard in all configurations. Standard Class IV shutoff with V and VI optional with metal-to-PTFE seating.

  • Restricted trim capabilities available.
  • NPS1/2, ¾, 1, 1 ½, 2, 3, 4, 6, AND 8 inch
  • 150-600 flanged ANSI Class rating, buttweld and socket weld end connections are also available.
  • Available body materials are WCB, WCC, and SST (CF8M)
Fisher EZ Valve

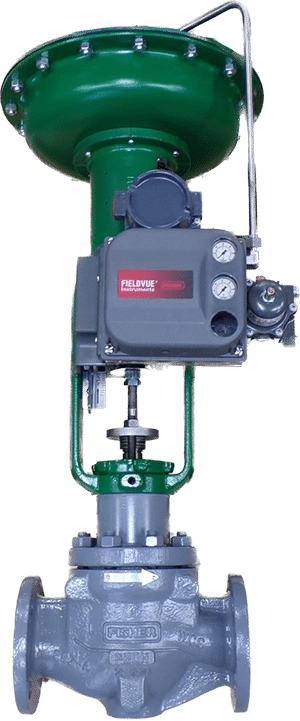

Fisher EZ w657-40 DVC

05

Fisher® Vee-Ball

The Fisher® Vee-ball is a rotary style valve that is equipped with a segmented ball valve with a contoured V-notch ball. Available designs are the V150, V200, and V300. The Vee-Ball design is a superior choice for applications such as gas, steam, liquids, or slurry processes.

  • NPS 1–24-inch valve sizes available.
  • 150-600 flanged ANSI class rating available.
  • Interchangeable trim components between the V150, V200, and V300.
  • Modified Equal Percent flow characteristics.
  • Noise attenuator ball and Cavitrol Hex Anti-Cavitation Trim are also available.
  • Body material construction include WCC steel, CG8M, and CF8M stainless stee.
V150 Valve

V150

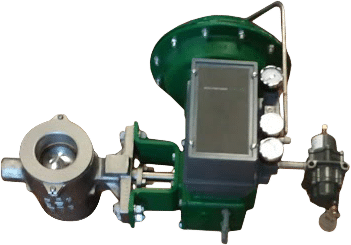

V200 Fisher Valve

V200

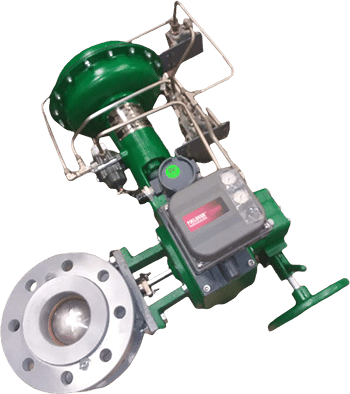

Fisher V300 Valve

V300

V500

06

Fisher V500

The Fisher® V-500 is a rugged rotary control valve featuring an eccentric plug that’s great for throttling or on/of control. For coking, erosive, or other harsh processes, the V-500 is an excellent choice. The self-centering seat ring allows for forward or reverse flow, with tight shutoff capabilities in either direction.

  • NPS 1–8-inch valve sizes available.
  • 150-600 flanged ANSI class rating available.
  • Modified linear flow characteristics.
  • Body material construction includes WCC steel and CF8M SST.
  • Restricted trim available for low-flow applications.

07

Fisher® HP Series

The Fisher® HP series control valve is a globe style valve designed for high pressure with metal seating. Available options are globe or angle.

  • Available designs include HPS, HPT, HPD, HPAT, HPAS, AND HPAD.
  • ANSI class 900, 1500, 2500, and 3200 flange ratings available. Socket weld and Buttweld are also available.
  • NPS 1-24 valve sizes available depending on model.
  • Standard flow characteristics include Linear, Equal percent, and Modified Equal Percent. Whisper®III, Cavitrol®III, Micro-Flute, and Micro-flat characteristics are also available.
  • Body material construction include WCC Steel and Cf8M stainless steel.

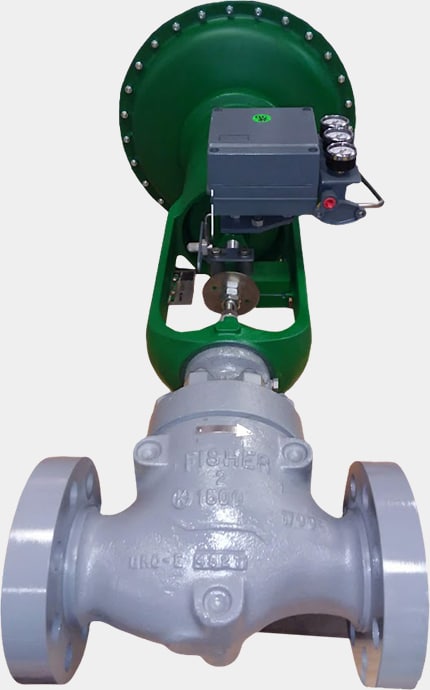

HPS Valve

08

Fisher EW

The Fisher EW series control valve design features a large internal cavity and expanded end connections. The EW series valves are great for fluid control, and where oversized piping is used to limit flow velocity. If cavitation or noise abatement is a concern, the EW series can also be equipped with Cavitrol®III, Whisper®III, or Whisper®NXG cages.

  • Flow characteristics include Quick Opening, Linear, and Equal Percent.
  • Cavitrol® and Whisper® linear cages also available.
  • Restricted capacity trims available.
  • NPS 4x2 up to 12x8
  • 150-900 flanged ANSI class rating available.
  • Available constructions include WCC carbon steel and CF8M stainless steel. Other options are also available upon request. Call ESP Valve today to discuss your needs.

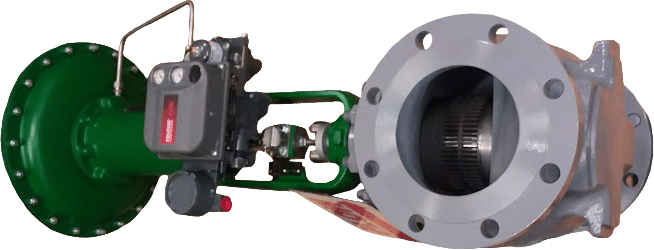

EWT final Valve

09

Fisher 8560

The Fisher® 8560 is a high-performance butterfly valve designed for excellent flow control, sour service capable, and with low-cost maintenance in mind.

  • Available body constructions are carbon steel or CF8M SST.
  • Available sizes are NPS 3, 4, 6, 8, 10, and 12.
  • CF8M Disc material
  • All sizes compatible with CL150 and CL300

10

Fisher® 8532

The Fisher® 8523 is a high-performance butterfly valve designed for extreme pressures and temperatures. The pressure assisted seal design offers tight shut-off. The 8532 can be made available for cryogenic or oxygen services.

  • Available body and disc constructions are carbon steel, stainless steel, duplex, or super duplex.
  • Available sizes are NPS 14, 16, 18, 20, 24, 30, 30, 36, 42, AND 48.
  • Wafer, flangeless, lugged, or double flanged body options.
  • Modified equal percent flow characteristics.
8532

11

Fisher® A11

The Fisher® A11 is a high-performance butterfly valve that features true bidirectional tight shutoff, ease of maintenance, standard soft seal, and high-pressure classes.

  • Available body and constructions are WCC steel or CF8M. CF8M disc construction.
  • Available sizes are NPS 6-24
  • Lugged design CL900, CL1500, or CL2500
  • Modified equal percent flow characteristic.
